SKU: AEP-X0016

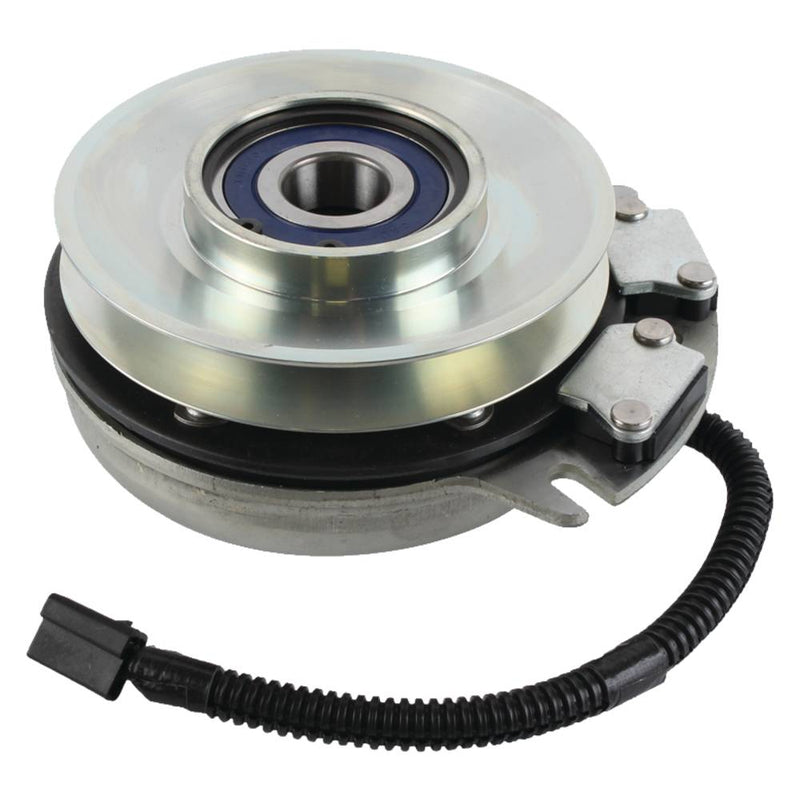

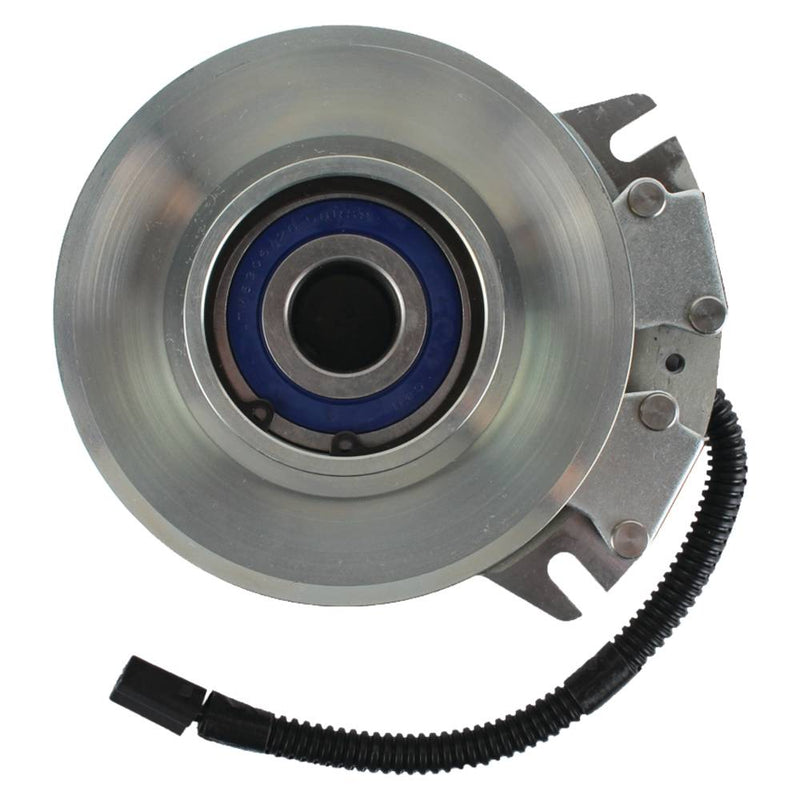

X0016 PTO Clutch

AEP
$198.58
$198.58
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Part Number: X0016

Description:

Xtreme PTO Clutch Cub Cadet 917-04180
Replaces: Cub Cadet 917-04180

Specs:
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • For mower side wiring harness purchase XMC1003
  • High performance bearings with high temperture grease
  • Replaceable Pulley Bearing
  • Stainless steel rivets and bands
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • IncludesClutch side integrated, water tight and impact resistant wire harness
  • Pulley Diameter6"
  • Rotation DirectionCounter Clockwise

Fitments

  • Bush Hog EC and Estate Commercial series and PZ2661
  • Cub Cadet 1863, 1864, 2086, 2176, 2185, 2186, 2206, 2284, 2518, GT2186 and GT2523
  • Encore Prowler front cut with 52", 61" and 72" deck and Prowler mid cut with 52" and 61" deck
  • MTD 1863, 1864, 2086, 2176, 2185, 2186, 2206, 2284 and 2518

Additional Part Numbers:

  • Bolens 717-3403
  • Bolens 717-3403P
  • Bolens 917-3403
  • Bush Hog 50068674
  • Bush Hog 50068675
  • Craftsman 717-3403
  • Craftsman 717-3403P
  • Craftsman 917-3403
  • Cub Cadet 717-3403
  • Cub Cadet 717-3403P
  • Cub Cadet 917-04180
  • Cub Cadet 917-3403
  • Encore 523025
  • Encore 523370
  • Huskee 717-3403
  • Huskee 717-3403P
  • Huskee 917-3403
  • MTD 717-04180
  • MTD 717-3403
  • MTD 717-3403P
  • MTD 917-04180
  • MTD 917-3403
  • Rhino 50068675
  • Troy-Bilt 717-3403
  • Troy-Bilt 717-3403P
  • Troy-Bilt 917-04180
  • Troy-Bilt 917-3403
  • Warner 5218-17
  • Warner 5218-284
  • Warner 5218-285
  • Warner 5218-302
  • Warner 5218-6
  • Sunbelt B1XT0016
  • Prime Line 7-06038
  • Oregon 33-123
  • NHC 274-2406
  • Stens 255-419X
  • WAIGLOBAL 19-016
  • Rotary 12228
