SKU: AEP-X0138

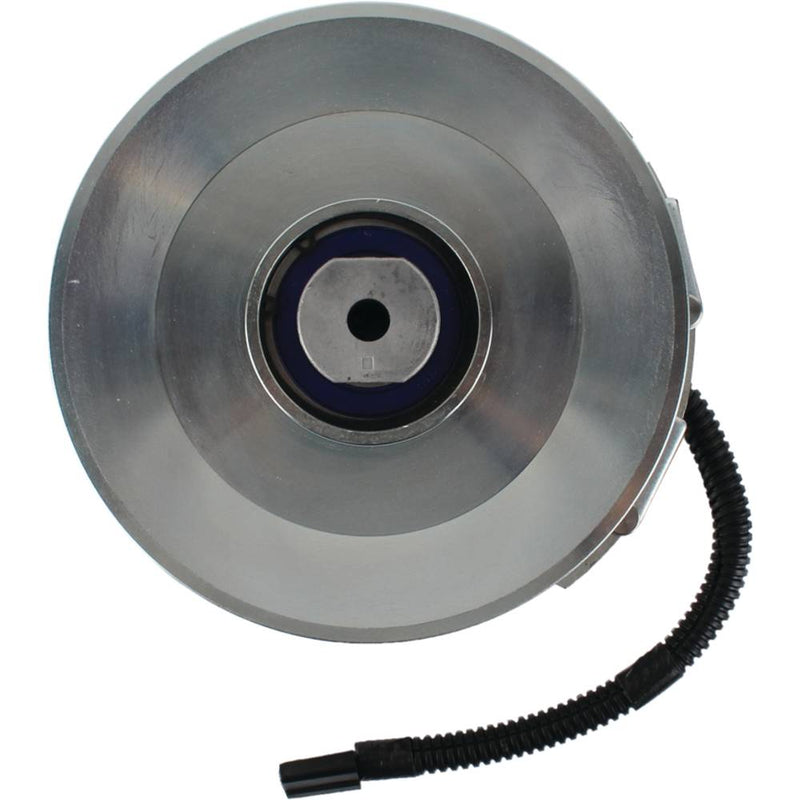

X0138 PTO Clutch

AEP
$182.80
$182.80
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Part Number: X0138

Description:

Xtreme PTO Clutch Toro 109-7035
Replaces: Toro 109-7035

Specs:
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • For mower side wiring harness purchase XMC1003
  • High performance bearings with high temperture grease
  • Replaceable Pulley Bearing
  • Stainless steel rivets and bands
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"

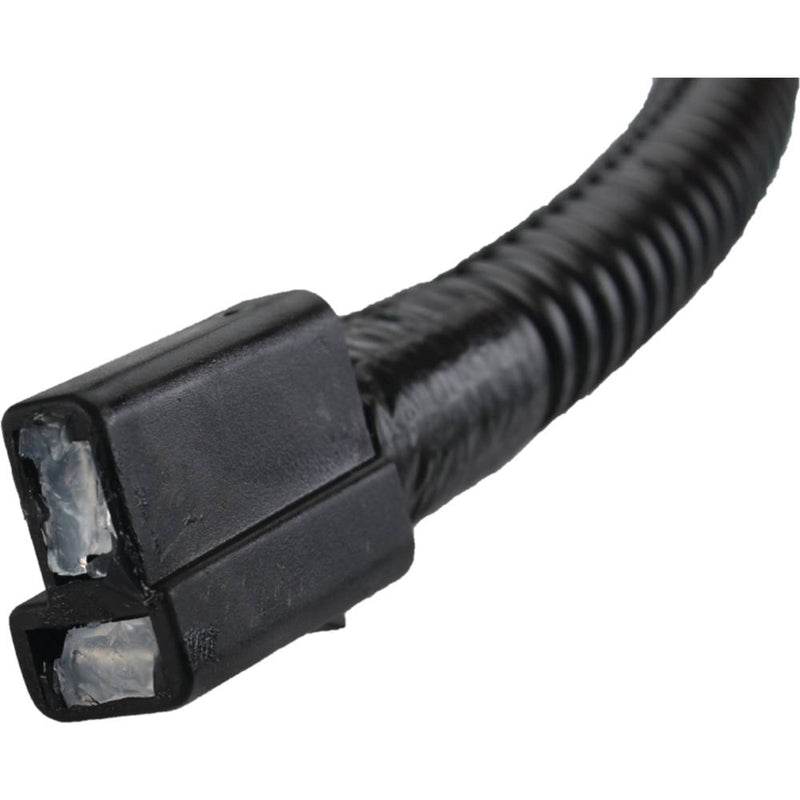

  • IncludesClutch side integrated, water tight and impact resistant wire harness
  • Pulley Diameter7 1/4"
  • Rotation DirectionCounter Clockwise

Fitments

  • Exmark Lazer Z CT, Serial No. 370,000 and higher
  • Toro TimeCutter 74401, 74502 and 74601, Serial No. 220000001-240999999
  • Toro TimeCutter 74701, Serial No. 230000001-230999999
  • Toro TimeCutter 74602 and 74802, Serial No. 240000001-240999999
  • Toro TimeCutter 74405, 74801 and 74702, Serial No. 230000001-240999999
  • Toro TimeCutter 74401, 74501, 74502, 74601 and 74701, Serial No. 210000001-220999999
  • Toro TimeCutter 74801, Serial No. 220000001-220999999
  • Toro and Z Master Z400, Serial No. 250000001-280999999

Additional Part Numbers:

  • Exmark 104-3624
  • Exmark 109-7035
  • Toro 104-3624
  • Toro 109-7035
  • Prime Line 7-06289
  • Stens 255-721X
  • WAIGLOBAL 19-138
