SKU: AEP-X0196

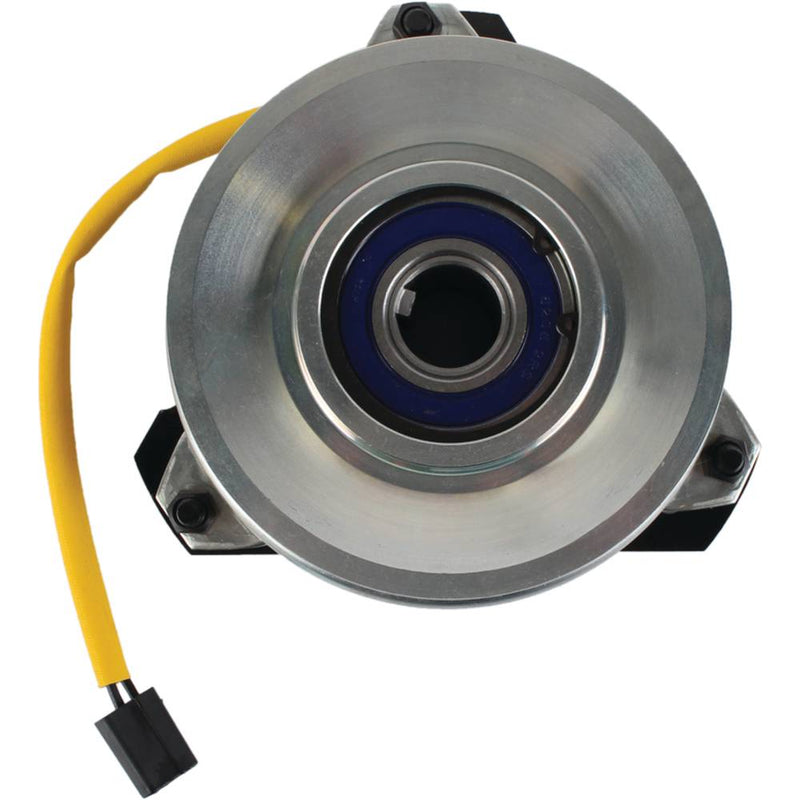

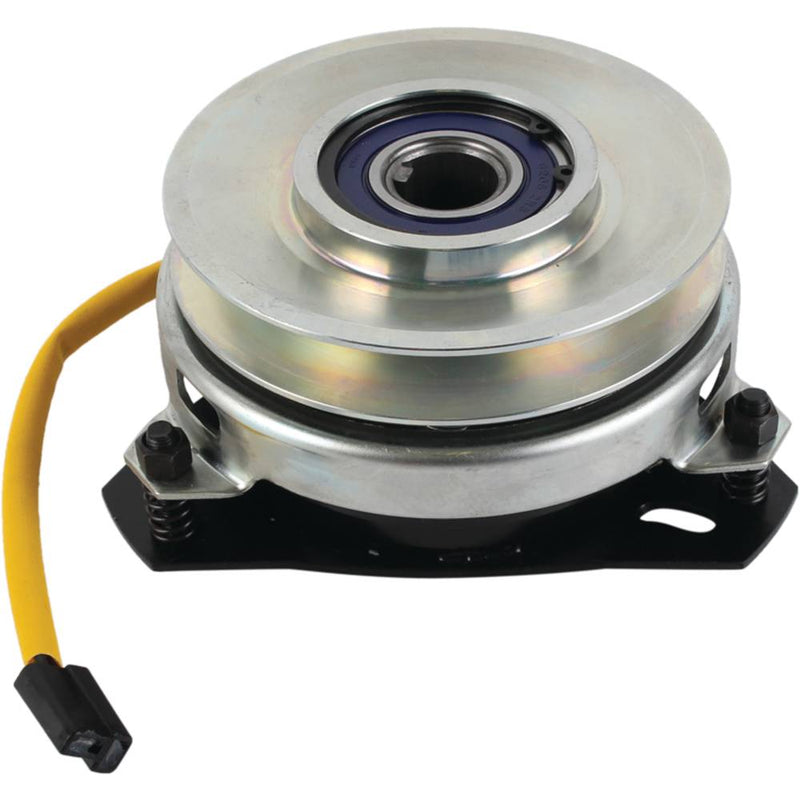

X0196 PTO Clutch

AEP
$184.11
$184.11
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Part Number: X0196

Description:

Xtreme PTO Clutch Ariens 03450500
Replaces: Ariens 03450500

Specs:
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • For mower side wiring harness purchase XMC1003
  • High performance bearings with high temperture grease
  • Replaceable Pulley Bearing
  • Stainless steel rivets and bands
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • IncludesClutch side integrated, water tight and impact resistant wire harness
  • Pulley Diameter5 5/16"
  • Rotation DirectionClockwise

Fitments

  • Ariens 934005, 934006, 934007, 934008, 934019 and 934020, HT series
  • Ariens 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
  • Gravely 934005, 934006, 934007, 934008, 934019 and 934020, HT series
  • Gravely 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
  • Snapper ZTR series 0-5
  • Toro 612-Z, Serial No. 1000001-1999999, 616-Z and 620-Z, Serial No. 1000001-5999999, 616-Z, Serial No. 3900001-4999999, and Z118, Serial No. 79000001-79999999

Additional Part Numbers:

  • Ariens 03450500
  • Ariens 050236
  • Ariens 3450500
  • Dixie Chopper 50300
  • Exmark 116277
  • Gravely 03450500
  • Gravely 050236
  • Ingersoll Rand C48055
  • Snapper 7079197
  • Snapper 7079446
  • Snapper 7079446YP
  • Snapper 79197
  • Snapper 7-9197
  • Snapper 79446
  • Snapper 7-9446
  • Toro 116277
  • Warner 5210-34
  • Warner 5210-50
  • Warner 5215-146
  • Warner 5215-88
  • Prime Line 7-06263
  • Oregon 33-118-1
  • NHC 274-2661
  • Stens 255-323X
  • WAIGLOBAL 19-196
  • Rotary 11070
  • Ratio Parts 030-792
