SKU: AEP-X0257

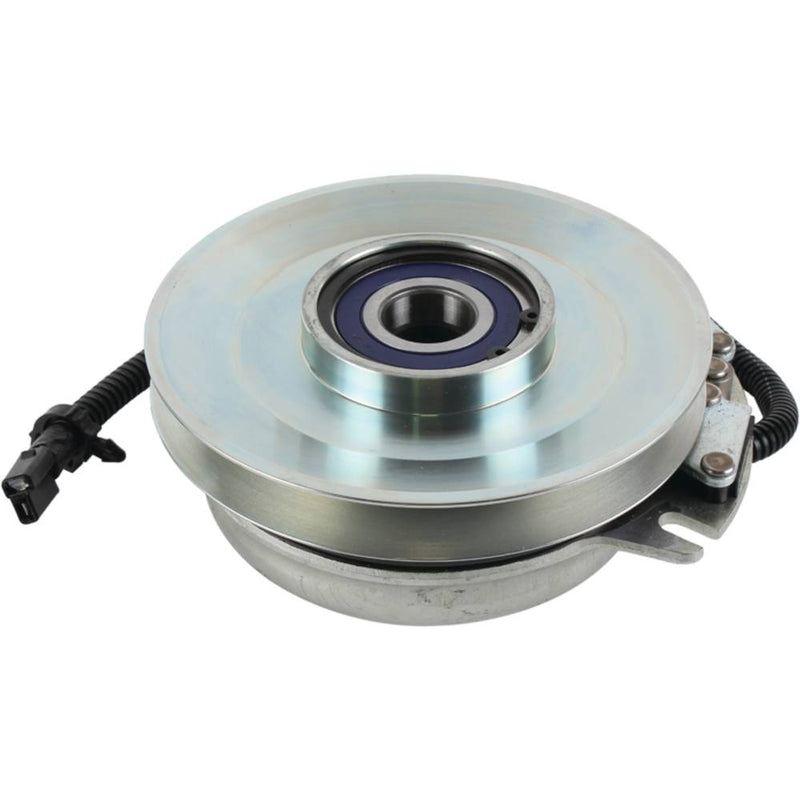

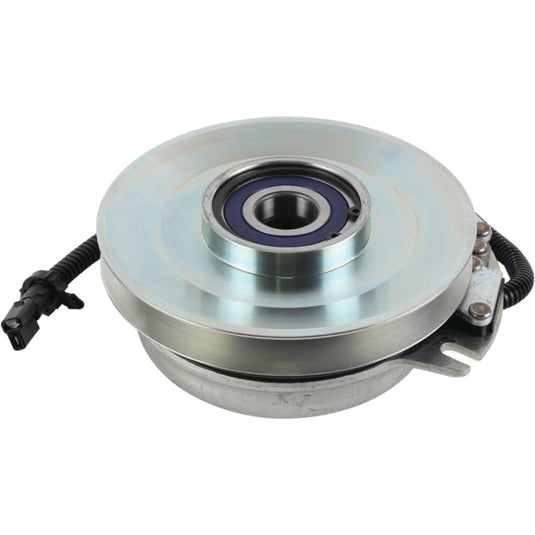

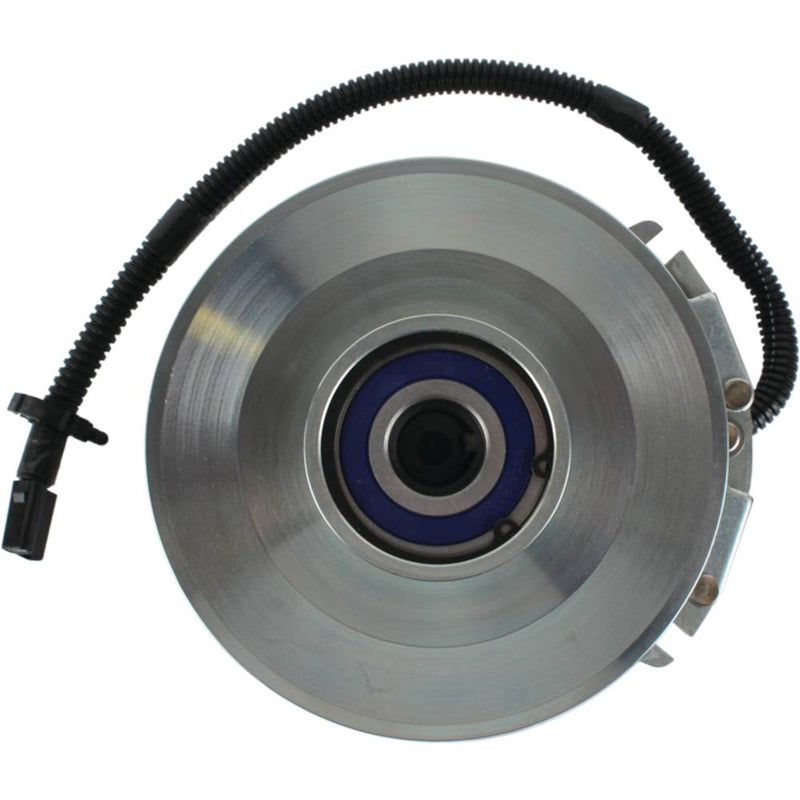

X0257 PTO Clutch

AEP
$261.73
$261.73
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Part Number: X0257

Description:

Xtreme PTO Clutch Exmark 103-6590
Replaces: Exmark 103-6590

Specs:
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • For mower side wiring harness purchase XMC1003
  • High performance bearings with high temperture grease
  • Replaceable Pulley Bearing
  • Stainless steel rivets and bands
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • IncludesClutch side integrated, water tight and impact resistant wire harness
  • Pulley Diameter7 3/16"
  • Rotation DirectionClockwise

Fitments

  • Exmark Lazer Z AC and AS, Serial No. 440,000 and higher
  • Toro Z Master Z500, Z528 and Z553

Additional Part Numbers:

  • Exmark 103-3131
  • Exmark 103-3245
  • Exmark 103-6590
  • Toro 103-3131
  • Toro 103-3245
  • Toro 103-6590
  • Warner 5218-100
  • Warner 5218-228
  • Warner 5218-243
  • Sunbelt B1XT0257
  • Sunbelt B1EC125
  • Stens 255-243X
  • WAIGLOBAL 19-257
  • Rotary 12981
