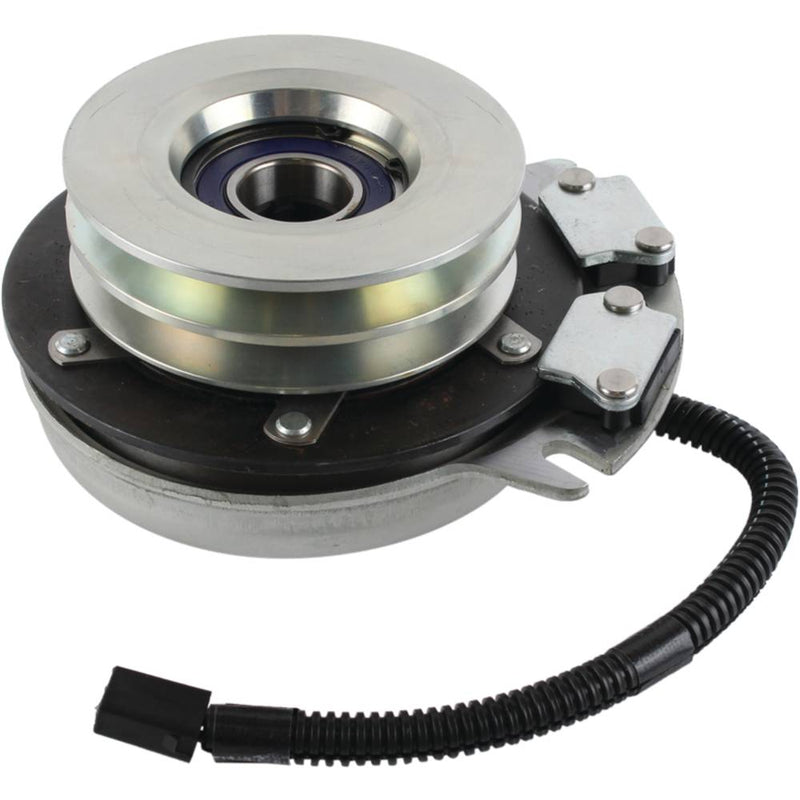

X0328 PTO Clutch image 1

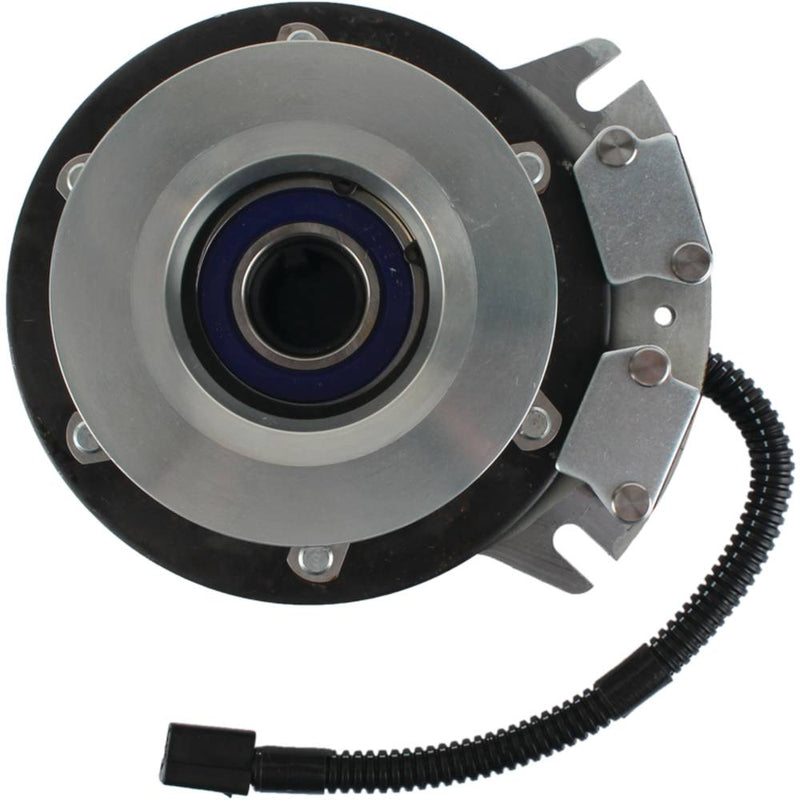

X0328 PTO Clutch image 2
X0328 PTO Clutch image 3
Load image into Gallery viewer, X0328 PTO Clutch image 1
Load image into Gallery viewer, X0328 PTO Clutch image 2
Load image into Gallery viewer, X0328 PTO Clutch image 3

SKU: AEP-X0328

X0328 PTO Clutch

AEP
$274.89
$274.89
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Part Number: X0328

Description:

Xtreme PTO Clutch Grasshopper 606239
Replaces: Grasshopper 606239

Specs:
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • For mower side wiring harness purchase XMC1003
  • High performance bearings with high temperture grease
  • Replaceable Pulley Bearing
  • Stainless steel rivets and bands
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt WidthDouble A
  • ID1"
  • IncludesClutch side integrated, water tight and impact resistant wire harness
  • Pulley Diameter4 7/8"
  • Rotation DirectionClockwise

Fitments

  • Grasshopper 614, 616, 618 (1998-2001) and 718 (2001-2003)
  • Woods Mow 'n Machines

Additional Part Numbers:

  • CaseIH C375569
  • Grasshopper 388760
  • Grasshopper 388761
  • Grasshopper 388763
  • Grasshopper 388764
  • Grasshopper 388765
  • Grasshopper 388795
  • Grasshopper 604240
  • Grasshopper 606239
  • Grasshopper 606240
  • Ingersoll Rand C375569
  • Jacobsen C375569
  • Warner 5218-212
  • Warner 5218-264
  • Warner 5218-59
  • Warner 5218-69
  • Warner 5219-10
  • Woods 388760
  • Woods 388761
  • Woods 388763
  • Woods 388764
  • Woods 388765
  • Woods 388795
  • Woods 606239
  • Woods 606240
  • Stens 255-833X
  • WAIGLOBAL 19-328
