SKU: AEP-X0505

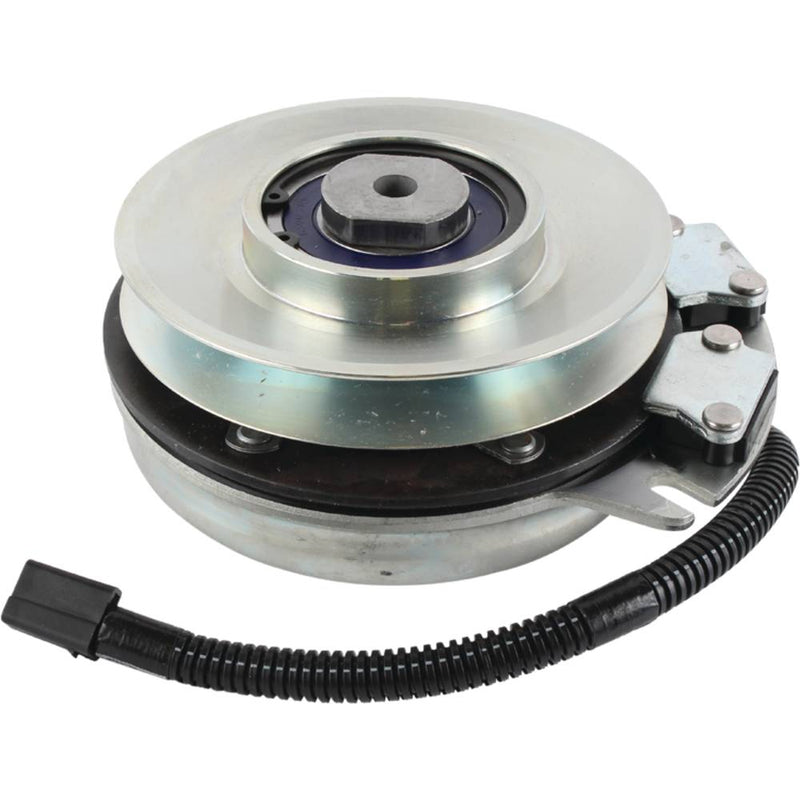

X0505 PTO Clutch

AEP
$359.09
$359.09
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Part Number: X0505

Description:

Xtreme PTO Clutch Cub Cadet 917-04754A
Replaces: Cub Cadet 917-04754A

Specs:
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • For mower side wiring harness purchase XMC1003
  • High performance bearings with high temperture grease
  • Replaceable Pulley Bearing
  • Stainless steel rivets and bands
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"

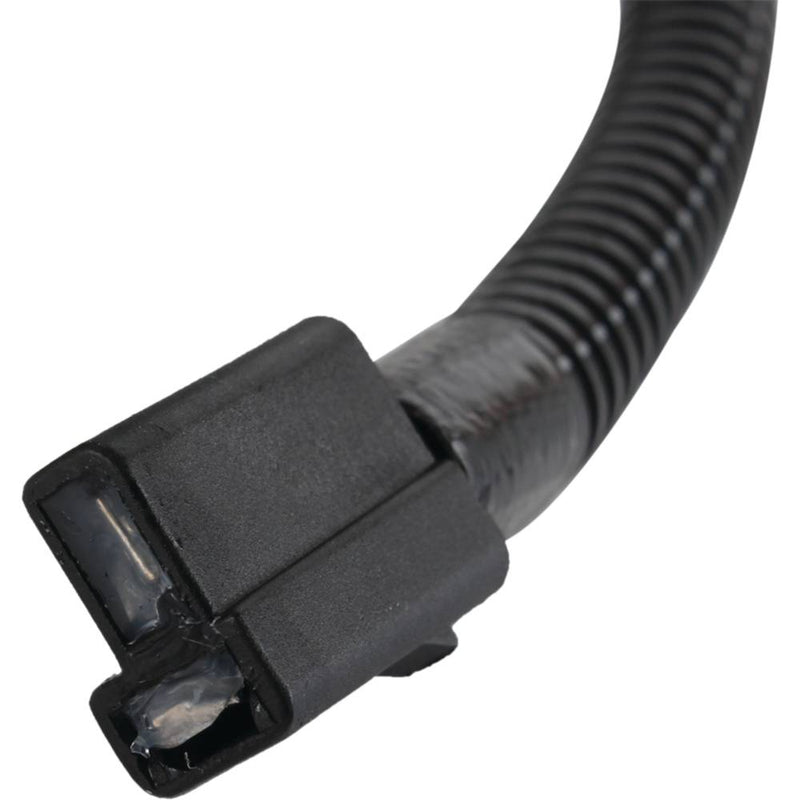

  • IncludesClutch side integrated, water tight and impact resistant wire harness
  • Pulley Diameter6"
  • Rotation DirectionCounter Clockwise

Fitments

  • Cub Cadet Z Force S 54, 60, 2013, Tank series, M60-KW LC and M72-KW LC

Additional Part Numbers:

  • Cub Cadet 01009590
  • Cub Cadet 01009590P
  • Cub Cadet 717-04754
  • Cub Cadet 717-04754A
  • Cub Cadet 917-04754
  • Cub Cadet 917-04754A
  • Warner 5219-119
  • Stens 255-150X
  • WAIGLOBAL 19-505
